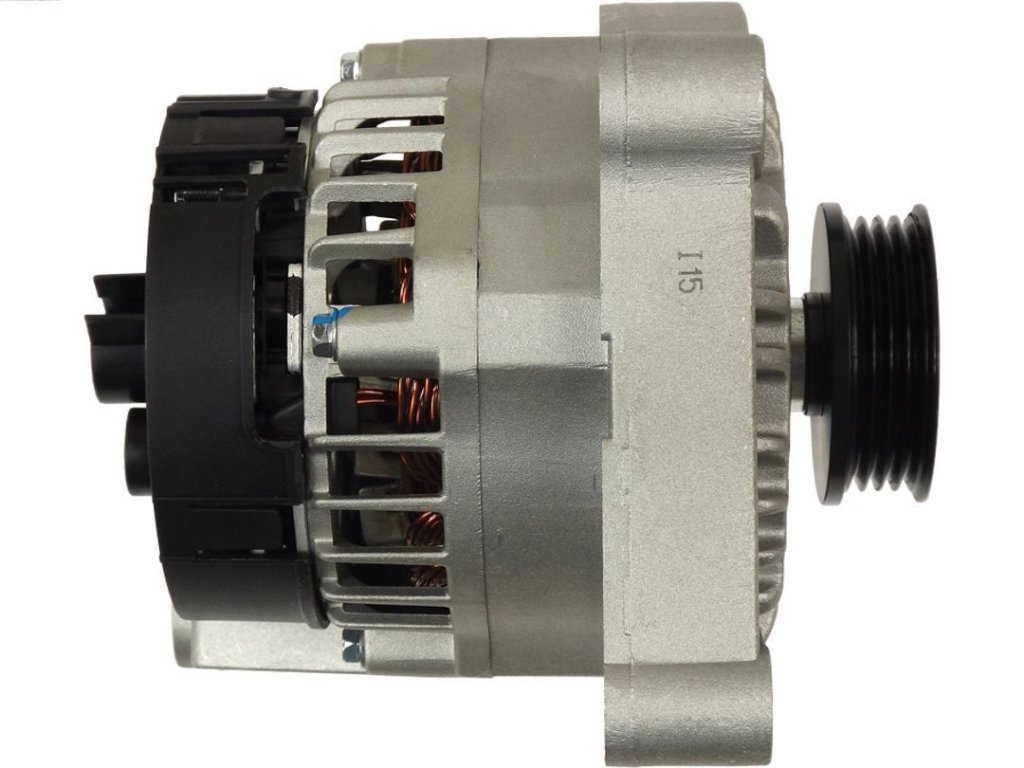

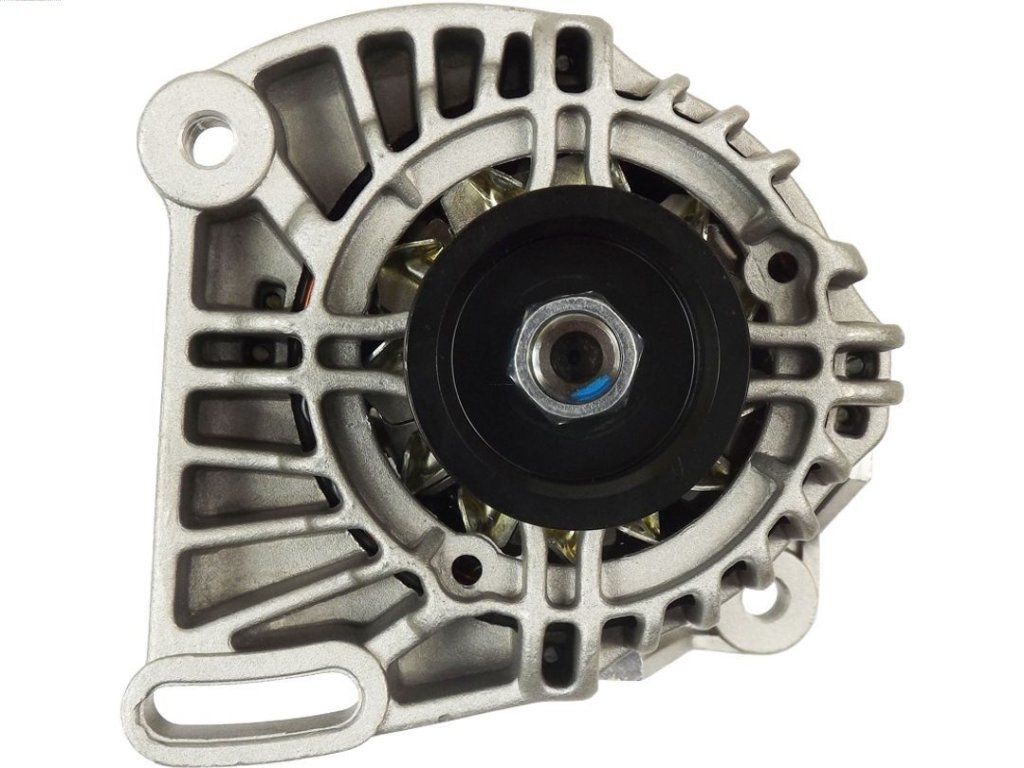

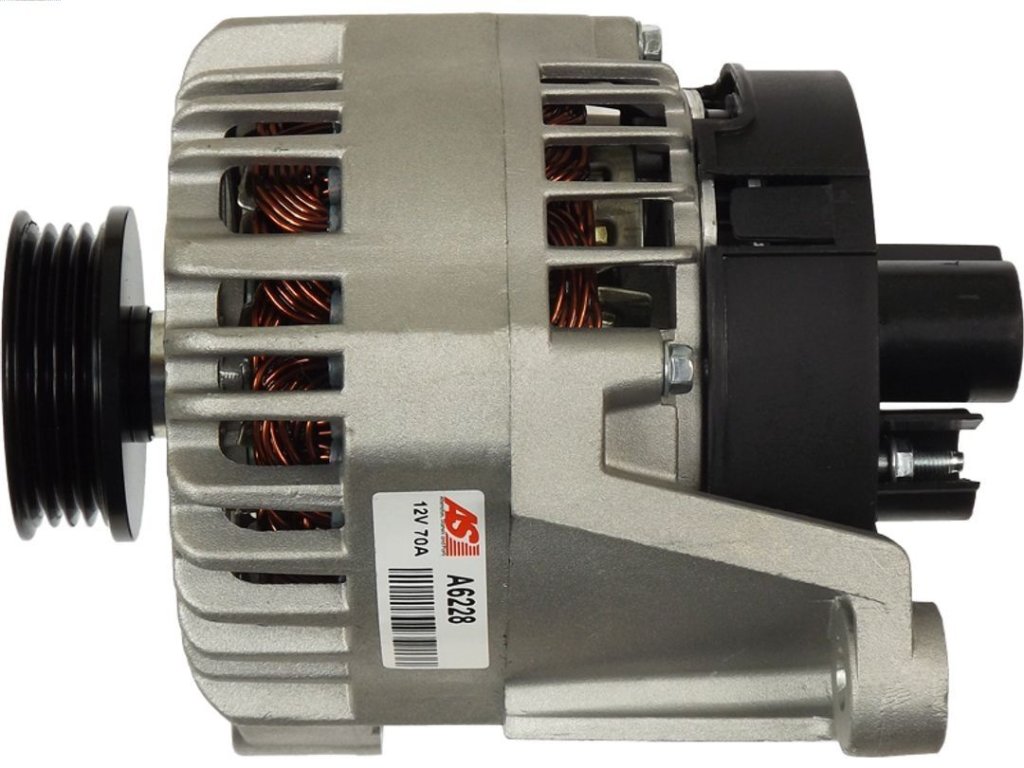

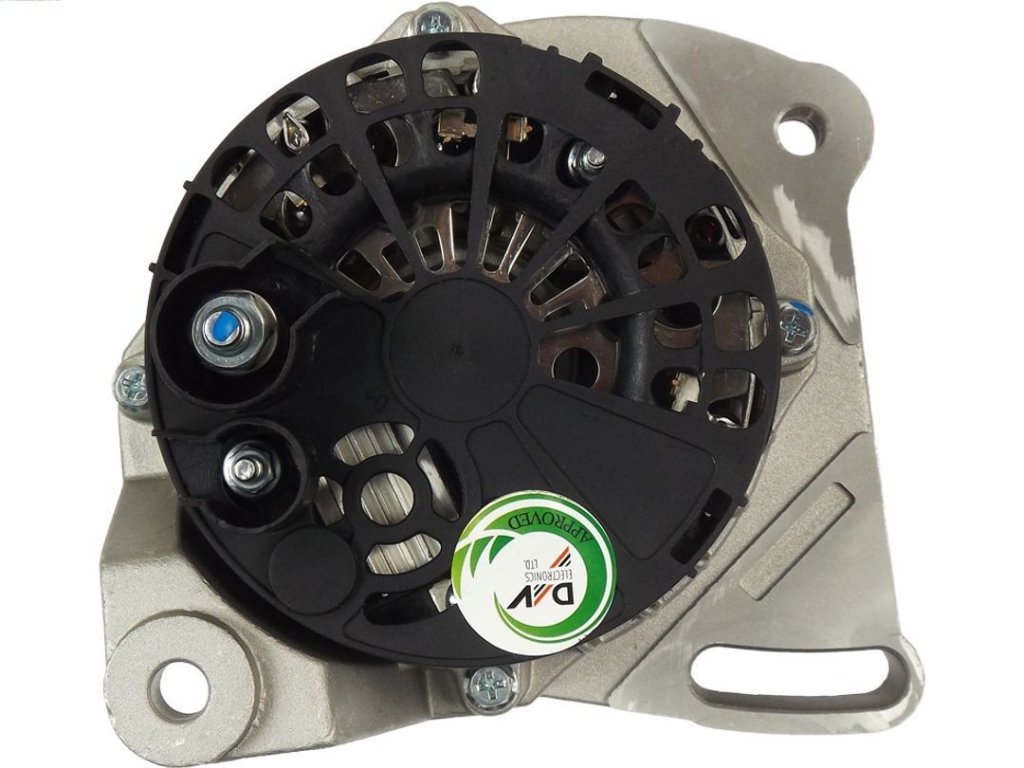

Alternátor A6228 70A
Kód: ALT12063RV ALT12063R ALT12063NV ALT12063N Zvoľte variant
Doprava ZADARMO nad 100€
Kamenná predajňa aj autoservis
Výmenný spôsob agregátov - bez čakania na opravu
Podrobný popis
Pred objednaním produktu si identifikujte typ motora, aby nedošlo k omylu.
Identifikované číslo motora (typ) nájdete v technickom preukaze pod číslom 13 (P.5)
| Napätie [ V ] | 12 |
| Intenzita [ A ] | 70 |
| Rozmer A [ mm ] | 55.00 |
| Rozmer B [ mm ] | 31.50 |
| G [ qty. ] | 4 |
| O.D.1 [ mm ] | 60.00 |
| Kladka | AP |
| Značka | Model | Typ | let | Poznámky |
|---|---|---|---|---|
| FIAT | Seicento 1.1 | [176B2.000] | 01.1998- | |
| FIAT | Seicento 1.1 | [176B2.000] | 01.1998-12.2000 | |
| FIAT | Seicento 1.1 | [187A1.000] | 01.1998- | |
| FIAT | Punto 55 1.1 | [176A6.000] | 01.1993-12.1999 | |
| FIAT | Seicento 1.1 | [187A1.000] | 01.1998-12.2000 | |
| FIAT | Doblo 1.2 8V | [223A5.000] | 01.2001- | |
| FIAT | Punto 55 1.1 | [176B2.000] | 01.1993-12.1999 | |
| FIAT | Doblo 1.2 i.e. 8V | [223A5.000] | 03.2001- | |
| FIAT | Panda 1.2 X | [188A4.000] | 09.2004- | |
| FIAT | Palio 1.2 | [188A4.000] | 01.1997-12.2002 | |
| FIAT | Punto 60 1.2 | [176A7.000] | 01.1993-12.1997 | |
| FIAT | Punto 1.2 | [188A4.000] | 09.1999- | |
| FIAT | Panda 1.1 | [187A.1000] | 09.2003- | |
| FIAT | Punto 1.2 | [188A4.000] | 02.2000- | |
| FIAT | Siena 1.2 | [188A5.000] | 01.2001- | |
| FIAT | Punto 60 1.2 | [176B1.000] | 01.1993-12.1999 | |
| FIAT | Panda 1.1 | [187A1.000] | 09.2004- | |
| FIAT | Punto 60 1.2 | [176B4.000] | 01.1993-12.1999 | |
| FIAT | Panda 1.2 | [188A.4000] | 09.2003- | |
| FIAT | Palio 1.2 | [178B5.000] | 04.1996-02.2001 | |
| FIAT | Strada 1.2 | [178B5.000] | 06.1999-03.2005 | |
| FIAT | Panda 1.2 | [188A4.000] | 09.2004- | |
| FIAT | Punto 75 1.2 | [176A8.000] | 01.1993-12.1999 | |
| FIAT | Punto 1.2 8V | [188A4.000] | 01.1999-12.2003 | |
| FIAT | Panda 1.2 4x4 | [188A4.000] | 10.2004- | |
| FIAT | Palio 1.2 | [178B7.045] | 01.1997-12.2002 | |
| FIAT | Punto 1.2 Natural Power | [188A4.000] | 09.2003- | |
| FIAT | Palio 1.2 | [178C4.066] | 01.1997-12.2002 | |
| LANCIA | Y 1.2 i.e. | [188A4.000] | 01.1996-12.2000 | |
| LANCIA | Y 1.2 i.e. | [840A3.000] | 01.1996-12.2000 | |
| LANCIA | Ypsilon 1.2 | [188A4.000] | 10.2003- | |
| LANCIA | Ypsilon 1.2 | [188A5.000] | 10.2003- | |
| LANCIA | Y 1.1 i.e. | [176B2.000] | 01.1997-12.2000 |
EAN: 5901259499612
| Referenčné číslo | Producer |
|---|---|
| A6228 | AS-PL |
| UD90025A | AS-PL |
| ALTF761 | 3EFFE |
| ALTL231M | 3EFFE |
| ALTL777 | 3EFFE |
| PRAF761 | 3EFFE |
| PRAL231 | 3EFFE |
| PRAL231U | 3EFFE |
| PRAL777 | 3EFFE |
| AEA1248 | AUTOELECTRO |
| CAL30100AS | CASCO |
| CAL30100GS | CASCO |
| CAL30100OS | CASCO |
| 4385 | CEVAM |
| DA4463 | DELCO |
| DRA3353 | DELCO |
| DRA3353X | DELCO |
| RAA14464 | DELCO |
| 102211-8220 | DENSO |
| 102211-8221 | DENSO |
| 56324 | EAI |
| 28-2504 | ELSTOCK |
| 46231693 | FIAT |
| 46420960 | FIAT |
| 46530060 | FIAT |
| 46800158 | FIAT |
| 46843093 | FIAT |
| 51859047 | FIAT |
| 71721120 | FIAT |
| 71721152 | FIAT |
| AG0185 | GHIBAUDI |
| GADAN511-A | GPARTS |
| GADAN511D-R | GPARTS |
| CA1844IR | HC PARTS |
| 8EL012426661 | HELLA |
| A11VI46 | ISKRA / LETRIKA |
| ALE1844 | KRAUF |
| 30890RI | KUHNER |
| 30890RID | KUHNER |
| 30890RIR | KUHNER |
| LRB00148 | LUCAS |
| LRB148 | LUCAS |
| 63320219 | MAGNETI MARELLI |
| 63321200 | MAGNETI MARELLI |
| 63321233 | MAGNETI MARELLI |
| 63321270 | MAGNETI MARELLI |
| 63321600 | MAGNETI MARELLI |
| 63321605 | MAGNETI MARELLI |
| 63321712 | MAGNETI MARELLI |
| 63321848 | MAGNETI MARELLI |
| 63321867 | MAGNETI MARELLI |
| 943321173 | MAGNETI MARELLI |
| 943321200 | MAGNETI MARELLI |
| 943321200010 | MAGNETI MARELLI |
| 943321270 | MAGNETI MARELLI |
| 944390394710 | MAGNETI MARELLI |
| MAN640 | MAGNETI MARELLI |
| MAN644 | MAGNETI MARELLI |
| MAR5105 | MAGNETI MARELLI |
| MRA39471 | MAGNETI MARELLI |
| 89212856 | POWERMAX |
| 20110148 | PRESTOLITE |
| 505.513.065.050 | PSH |
| 505.513.065.265 | PSH |
| 20104001BN | REAL |
| 20104001OE | REAL |
| 20104001RE | REAL |
| 2030100.0 | SANDO |
| 2030100.1 | SANDO |
| 2030100.4 | SANDO |
| ALT2120 | SIOM |
| ALT2120A | SIOM |
| 20984N | WAI / TRANSPO |
| ALT12007 | WOODAUTO |
| DENDAN511 | WOODAUTO |
| 210237 | ERA |
| 210348 | ERA |
| 210746 | ERA |
| A12MA0189A2 | SIDAT |
| ALT9017 | ELECTROLOG |
| STA0006R | BOVEZ |
| 46407644 | FIAT |
| 46419297 | FIAT |
| 46758244 | FIAT |
| 51700669 | FIAT |
| 5895028 | FIAT |
| 71783561 | FIAT |
| 7712541 | FIAT |
| 7715541 | FIAT |
| 7779915 | FIAT |
| STX100015R | STARDAX |
| STX100022 | STARDAX |
| STX100022R | STARDAX |
| STX100266 | STARDAX |
| STX100266R | STARDAX |
| STX100015 | STARDAX |
Vlastnosti, Hodnoty
Napätie (V) 12
Amperáž (A) 75
rotácie CW
Typ remenice je pevný
Drážky 4
Priemer kladky (mm) 60
B+ terminál (30) M8
Plug Code 230
Alternátorový dizajn IF / IR
OE Výrobca MAGNETI MARELLI
Výrobca vozidla FIAT
Predné montážne otvory 2
Predné závitové otvory 0
Zadné montážne otvory 1
Zadné závitové otvory 0
| OEM | OEM Reference | BOM |
|---|---|---|
| FIAT/MARELLI | 46554402 | |
| FIAT/MARELLI | 46554405 | |
| FIAT/MARELLI | 63321761 | |
| FIAT/MARELLI | 63321763 | |
| LUCAS | LRA02099 | |
| LUCAS | LRA2099 |
| Make | Model | Type | Year | Info |
|---|---|---|---|---|
| FIAT | DOBLO | 1.2 (223AXA1A) | 2001 - | 1242cc, 4cyl, 65HP |
| FIAT | DOBLO | 1.2 (223ZXA1A) | 2001 - | 1242cc, 4cyl, 65HP |
| FIAT | PALIO | 1.2 | 1997 - 2002 | 1242cc, 4cyl, 60HP |
| FIAT | PALIO | 1.2 | 1998 - | 1242cc, 4cyl, 73HP |
| FIAT | PALIO | 1.2 | 1999 - 2000 | 1242cc, 4cyl, 68HP |
| FIAT | PALIO | 1.2 | 1999 - 2002 | 1242cc, 4cyl, 68HP |
| FIAT | PALIO | 1.2 | 2001 - 2005 | 1242cc, 4cyl, 73HP |
| FIAT | PALIO | 1.2 | 2001 - | 1242cc, 4cyl, 62HP |
| FIAT | PALIO | 1.2 | 2001 - | 1242cc, 4cyl, 80HP |
| FIAT | PALIO | 1.2 | 2002 - 2003 | 1242cc, 4cyl, 67HP |
| FIAT | PALIO | 1.2 | 2002 - 2004 | 1242cc, 4cyl, 67HP |
| FIAT | PALIO | 1.2 (178DX.G1A) | 1996 - 2001 | 1242cc, 4cyl, 73HP |
| FIAT | PUNTO | 1.2 16V 80 (188.233 | - | |
| FIAT | PUNTO | 1.2 60 (188.030 | - | |
| FIAT | PUNTO | 75 1.2 | 1993 - 1999 | 1242cc, 4cyl, 73HP |
| FIAT | STILO | 1.2 16V (192_XA1B) | 2002 - 2006 | 1242cc, 4cyl, 80HP |
